Small Recessed Waterproof Manifold Cabinet

Wunda’s premium waterproof manifold cabinet provides a secure and simple solution for housing a Wunda Manifold and Premium Pumpset*.

Recessed and Surface Mounted options.
Available in 3 sizes*: Small, Medium & Large.

Product Information

Download Factsheet

T08 - WATERPROOF MANIFOLD CABINET

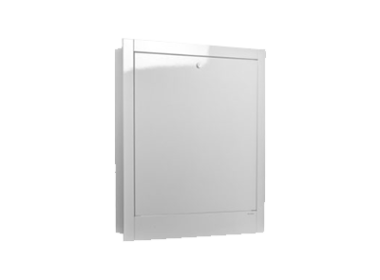

Recessed Cabinet

*For use with Wunda Premium Pumpset & GRUNDFOS or WILO pump; this cabinet is depth adjustable and can house both pump options.

Wunda's recessed waterproof manifold cabinet must be set into a suitably sized recess or opening and has an adjustable depth to suit either Wunda Premium pumpset.

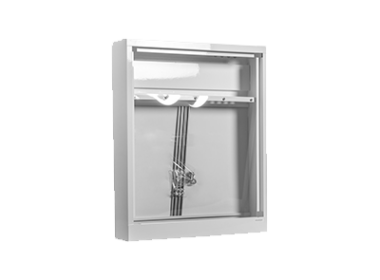

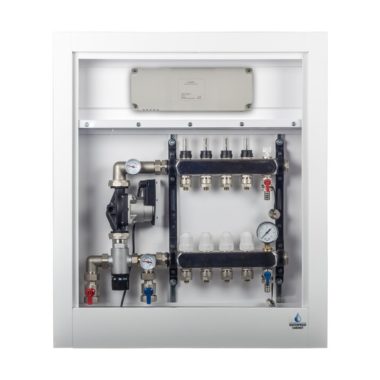

Our Premium waterproof cabinets are designed to protect and house the manifold and wiring centre in one convenient location. The cabinet lower section has an inner protective spray shield and sealed pipe entry holes that are sealed with rubber boots, these ensure that in the unlikely event of a leak it would be contained and exit via the integral drain off point. The upper section of the waterproof cabinet is designed to house the wired or wireless control box. Wunda waterproof cabinets are manufactured in powder coated steel plate and come supplied complete with locking door, water spray shield, rubber inlet/outlet boots, drain off point, pipe retaining bar, manifold mounting bars and securing bolts. IMPORTANT: This product is compatible with Wunda Premium Pumpsets only - with flow and return on the left hand side of the manifold. Wunda Standard Pumpsets requires a boiler return valve on the right hand end of the manifold and will not fit inside these cabinets. Available in 3 sizes* (subject to Pump conditions highlighted above):
  • SMALL fits 2-4 Port Wunda Premium Manifold & Premium Pumpset*
  • MEDIUM fits 5-8 Port Wunda Premium Manifold & Premium Pumpset*
  • LARGE fits 9-12 Port Wunda Premium Manifold & Premium Pumpset*

pa_product-type1749, 1750
pa_size1746, 1747, 1748
MaterialSteel (Powder coated)
ColourWhite
