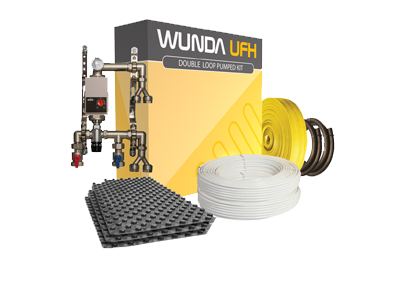

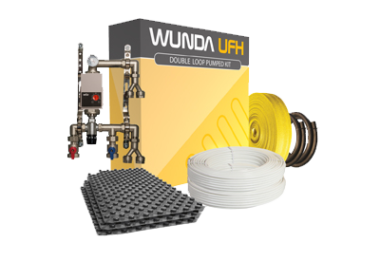

Castellated Panel Underfloor Kit up to 52m²

This system is independently pumped and is suitable for use with a variety of pipe spacing/outputs.

This kit can cover up-to 52m² using 250mm pipe spacing – see OUTPUT table below.

Includes Wunda’s Castellated Panel for quick & easy pipe laying.

Designed for use with TWO single loops of pipe up-to a maximum of 120 linear metres.

Product Information

Double Loop Pumped Screed/Castellated Panel Underfloor Kit - up to a MAXIMUM of 52m²

Each kit is designed to cover up to its maximum M² area using Wunda Pert/Al/Pert pipe. Because the kit is pumped it can cope with a a variety of pipe spacings. This kit comes complete with a 8 Kw Double Loop Wilo Pump, with an option for a Grundfos pump for £12 extra (£10+VAT). All kits feature 16mm Pert/al/Pert  pipe which contains an Aluminium barrier, preventing oxygen diffusion through the pipe walls.
Kit Area Coverage15sqm RTL Screed Kit, 12sqm RTL Screed Kit, 6sqm RTL Screed Kit
Pipe Length (Metres)2 x 50m, 2 x 80m, 2 x 100m, 2 x 120m
Pump IncludedWilo ErP (+£0), Grundfos EuP (+£10)
