The J single pipe channel spreader plate is designed for any configuration of joist spacing and can also be used in conjunction with our 150mm fit from below double pipe channel spreader, allowing underfloor heating pipes to be installed at a variety of pipe centres by cutting/adjusting the plates where necessary, each plate will allow the pipe to be easily clip in to position.

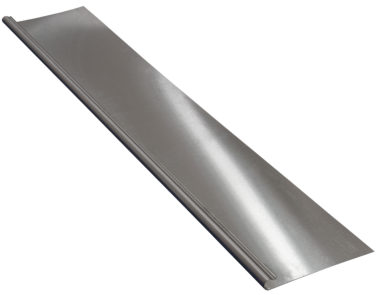

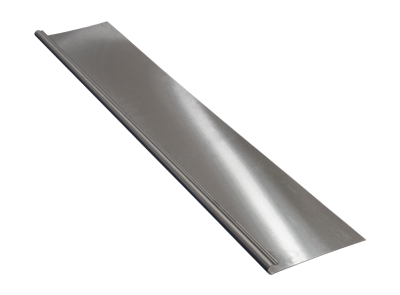

Fit From Below Spreader Plates -180mm J Shape – for Suspended Floors.
PLEASE CALL ; FOR AVAILABILITY
180mm wide, single pipe channel, suspended floor J shape Aluminium spreaders are designed to be fitted to the underside of an existing or new floorboards, floor deck.
The Single format J Plate is 1000 mm long x 180 mm wide x .05mm thick with single clip into channel, grooves are suitable for 16mm pipe.
