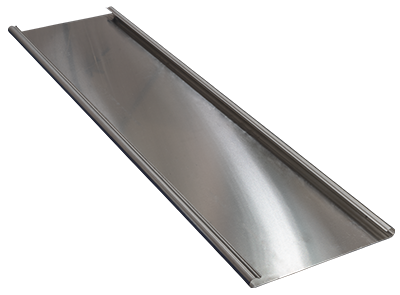

Fit From Below Spreader Plates – 250 mm x 1000 mm x 2 pipe channels for Suspended Floors.


Fit from below Aluminium Double Spreader Plate with two pipe channels set at 250mm spacing, designed to be installed from underneath existing floor boards or floor deck where underfloor heating is required.

Fit from below with 2 pipe channels set at 250mm spacing these spreader plates securely hold the UFH pipes flush against the underside of the flooring deck between the joists.

Product Information

Highly conductive 500 micron thick aluminium, these plates rapidly transfer heat through the floor deck into the room above, efficiently and effectively. The plates are exceptionally light, fast to install and offer a good heat output and response time.
  • 250mm wide X 1000mm long spreader
  • 2 pipe channels at 250mm spacing
  • Suitable for new build and well insulated extensions
  • No height build-up, sits under floor board within the floor structure
  • Can be run 2 plates per 600mm joist spacing giving 4 pipe runs per bay
  • Quick to install
Fit From Below spreaders offer a highly flexible solution that can be installed in existing suspended timber floors from below or after the deck has been laid.  the plates are screwed to the underside of the floor for a quick and secure installation. Spreader Plates are manufactured from high grade 500 micron thick aluminium ensuring the spreader plates hold the pipe securely in position.
