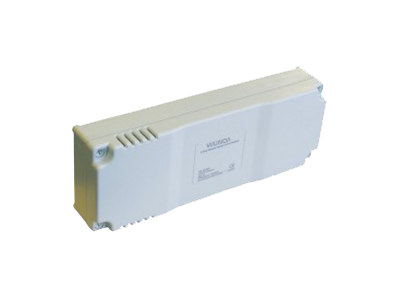

Download Factsheet E07 - 12 ZONE CONTROL BOX from our Support page.
- Supply voltage 230Vac, 50/60Hz
- Output voltage 230Vac, 50/60Hz
- Max Load 4A
- Number of zone outputs: 12 zones
- Left Hand: 1 x potential free relay output
- Right Hand: 1 x independent relay output (230Vac, 3A)
- Two relays will be engaged whenever one or more thermostats stop heating activity
- Ambient temperature 0°C - 50°C
