WundaTrade

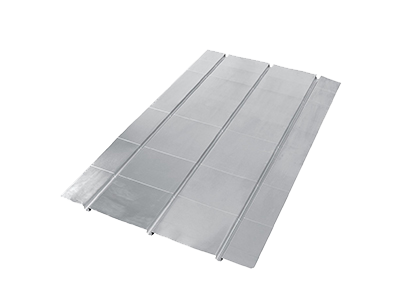

Aluminium Spreader Plate 588MM X 1000MM (Triple Loop)
Aluminium Spreader Plate 588MM X 1000MM (Triple Loop)
Shipping calculated at checkout.
Couldn't load pickup availability
Premium range of 500 micron aluminium spreader plates feature omega shape pipe channels designed to securely hold pipe in place.
Available in 200mm pipe spacing (3 pre-formed channels) for between 600mm joists.
Share
Product Information
Download Factsheet F04 - ALUMINIUM SPREADER PLATE SYSTEM from our Support page.
High grade thick Aluminium double spreader plates used for wood flooring and easily fixed between joists at 600mm centres using nails, screws or staples. Pipe is laid into the pre-formed channels at 200mm pipe centres. Insulation below the spreader plates will ensure maximum performance from this system.
- Preformed "Omega" channels at 200mm spacing
- Suitable for 15/16mm pipe
- Pre-scored for length adjustment
- 1000mm x 588mm
- High grade aluminium
- Easy to install
- Rapid response
- Lightweight
- Fast to install
|| Spec || Weight ||
| Pipe Spacing | 200mm |
| Length | 1000mm |
| Width | 588mm |
| Thickness | 0.5mm / 500 microns thick (+/- 10% tolerance) |
| Weight | 0.83kg |
