Small Area Single Loop Grundfos Pump Set 3Kw

Small Area Single Loop Grundfos Pump Set 3Kw

£166.95 GBP ex. VAT
£166.95 GBP ex. VAT
Sale
Shipping calculated at checkout.
Isolation Valves

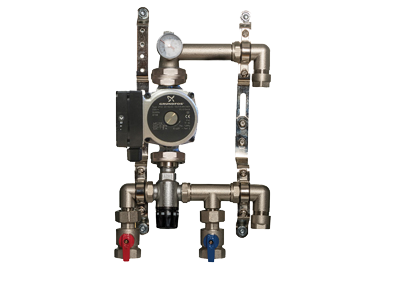

Grundfos ‘A’ Rated pump Small Area Single Loop Pumpset & Mixing Valve.

Compact pumpset used to supply systems upto 3kW using ONE loop of pipe up-to 120 metres in length. Pack consists of mixing valve, Grundfos pump, 16mm Cone connectors, mounting brackets, temp gauge & airvent.

Optional 1/2″ Isolation valves – £10 (+VAT)

View full details

Product Information

https://cdn.shopify.com/s/files/1/0910/4054/7154/files/Background.png?v=1751532090

Can be installed and connected to existing wet heat systems. The beauty of these small area pumpsets is that all connections are from below allowing the pump to be mounted vertically as per manufacturers guarantee requirements. Maximum length of pipe supported is ONE loop of upto 120 linear metres.

Pumpset Dimensions

https://cdn.shopify.com/s/files/1/0910/4054/7154/files/Single-Loop-Pumpset-Dimensions-IMG-only.jpg?v=1751528106

|| Dimension || Value ||
| A | 160mm |
| B | 125mm |
| C | 235mm |
| D | 352mm |
| E | 380mm |
| Overall depth | 130mm or 150mm pump face-on |
