Underfloor Heating Staple Screed Kit (Wilo Pump)

Underfloor Heating Staple Screed Kit (Wilo Pump)

£408.45 GBP ex. VAT
£408.45 GBP ex. VAT
Sale
Shipping calculated at checkout.
Area Size

Our underfloor screed kits includes our Premium manifold and Wunda’s Premium Pumpset with a Wilo Pump.

View full details

Product Information

Screed Underfloor Kit

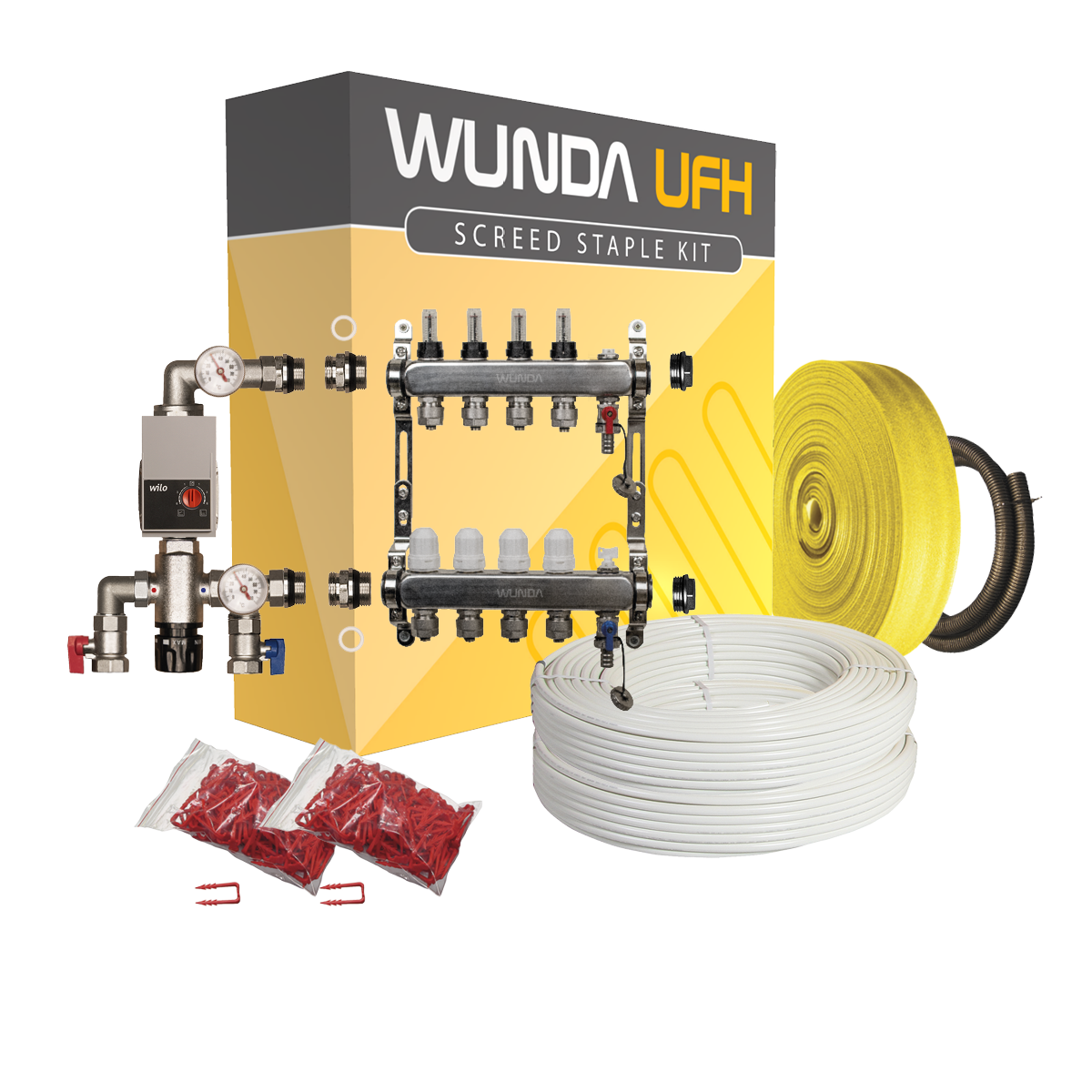

Our underfloor heating kits include our Premium high quality stainless steel manifold, Wunda's Premium pumpset with a Wilo pump.

Kits include:

  • Premium Stainless Steel Manifold - manufactured in the UK
  • Includes flow gauges, 2 x manual air vents with fill/drain points, pump connections and manifold pipe connectors
  • Wilo 'A' rated Pumpset & Isolation Valves
  • 16mm European PERT-AL-PERT barrier pipe
  • Edge Strip
  • Pipe Conduit
  • 45mm Pipe Staples (Thumb)

See comparison table for detailed components

|| Area size (max) || 40m² || 60m² || 80m² || 100m² || 120m² || 140m² || 160m² || 180m² || 200m² || 220m² || 240m² ||
| Premium Manifold | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| 'A'-rated Pumpset | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Pair of Isolation Valves | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Manifold Ports | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 16mm Pipe Lengths | 2 x 100m | 3 x 100m | 4 x 100m | 5 x 100m | 6 x 100m | 7 x 100m | 8 x 100m | 9 x 100m | 10 x 100m | 11 x 100m | 12 x 100m |
| Edge Strip | 50m | 50m | 75m | 100m | 125m | 150m | 150m | 175m | 200m | 225m | 250m |
| Pipe Conduit | 2m | 4m | 4m | 6m | 6m | 8m | 8m | 10m | 10m | 12m | 12m |
| Pipe Staples | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
| Coverage @ 200mm pipe centres | 40m² | 60m² | 80m² | 100m² | 120m² | 140m² | 160m² | 180m² | 200m² | 220m² | 240m² |
| Coverage @ 150mm pipe centres (using lightbulb ends) | 30m² | 45m² | 60m² | 75m² | 90m² | 105m² | 120m² | 135m² | 140m² | 165m² | 180m² |
| Coverage @ 100mm pipe centres (using lightbulb ends) | 20m² | 30m² | 40m² | 50m² | 60m² | 70m² | 80m² | 90m² | 100m² | 110m² | 120m² |
