Underfloor Heating Staple Screed Kit (Grundfos Pump)
Underfloor Heating Staple Screed Kit (Grundfos Pump)
Shipping calculated at checkout.
Couldn't load pickup availability

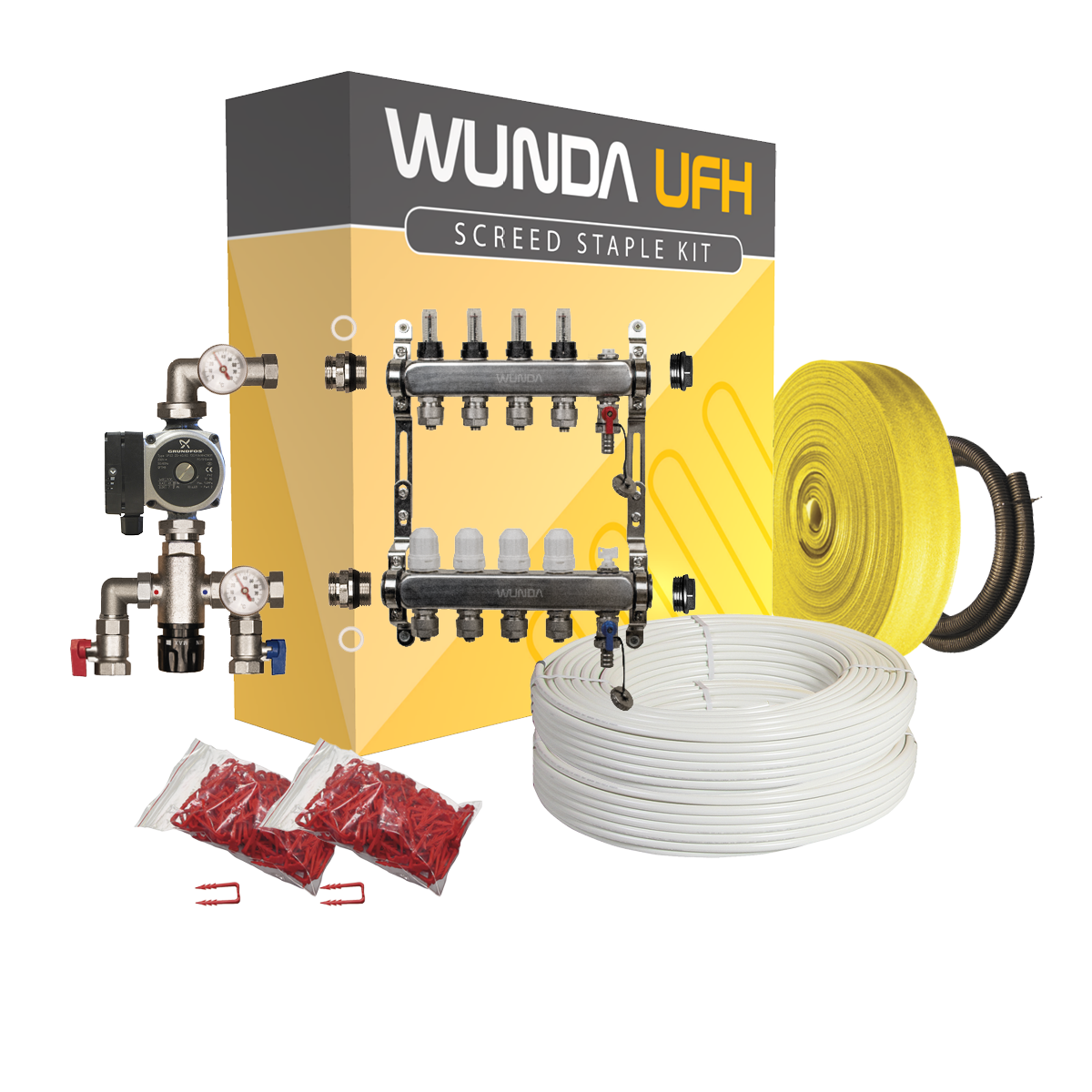

Our underfloor screed kits includes our Premium manifold and Wunda’s Premium Pumpset with a Grundfos Pump.
Share
Product Information
Screed Underfloor Kit
Our underfloor heating kits include our Premium high quality stainless steel manifold, Wunda's Premium pumpset with a Grundfos pump.
Kits include:
- Premium Stainless Steel Manifold - manufactured in the UK
- Includes flow gauges, 2 x manual air vents with fill/drain points, pump connections and manifold pipe connectors
- Grundfos 'A' rated Pumpset & Isolation Valves
- 16mm European PERT-AL-PERT barrier pipe
- Edge Strip
- Pipe Conduit
- 45mm Pipe Staples (Thumb)
See comparison table for detailed components
|| Area size (max) || 40m² || 60m² || 80m² || 100m² || 120m² || 140m² || 160m² || 180m² || 200m² || 220m² || 240m² ||
| Premium Manifold | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| 'A'-rated Pumpset | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Pair of Isolation Valves | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Manifold Ports | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 16mm Pipe Lengths | 2 x 100m | 3 x 100m | 4 x 100m | 5 x 100m | 6 x 100m | 7 x 100m | 8 x 100m | 9 x 100m | 10 x 100m | 11 x 100m | 12 x 100m |
| Edge Strip | 50m | 50m | 75m | 100m | 125m | 150m | 150m | 175m | 200m | 225m | 250m |
| Pipe Conduit | 2m | 4m | 4m | 6m | 6m | 8m | 8m | 10m | 10m | 12m | 12m |
| Pipe Staples | 400 | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
| Coverage @ 200mm pipe centres | 40m² | 60m² | 80m² | 100m² | 120m² | 140m² | 160m² | 180m² | 200m² | 220m² | 240m² |
| Coverage @ 150mm pipe centres (using lightbulb ends) | 30m² | 45m² | 60m² | 75m² | 90m² | 105m² | 120m² | 135m² | 140m² | 165m² | 180m² |
| Coverage @ 100mm pipe centres (using lightbulb ends) | 20m² | 30m² | 40m² | 50m² | 60m² | 70m² | 80m² | 90m² | 100m² | 110m² | 120m² |
