Download Factsheet M07 - WUNDA PREMIUM MANIFOLD from our Support page
This Manifold includes:
- Flow meters
- Return valves
- Pre-mounted on wall brackets
- Manifold bar end blanks

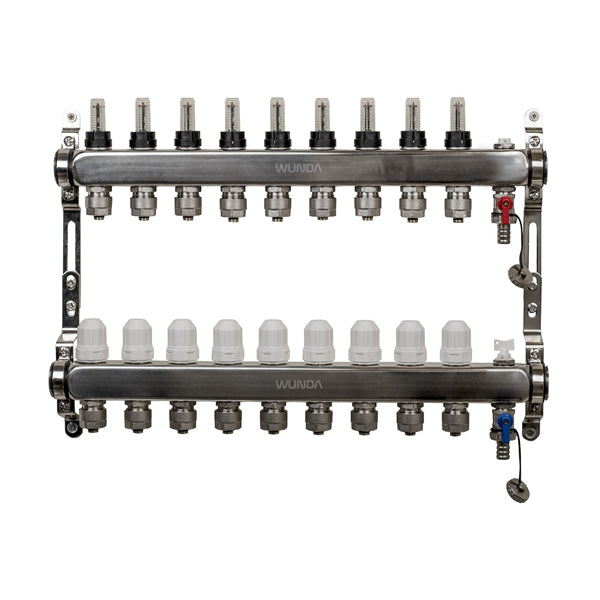

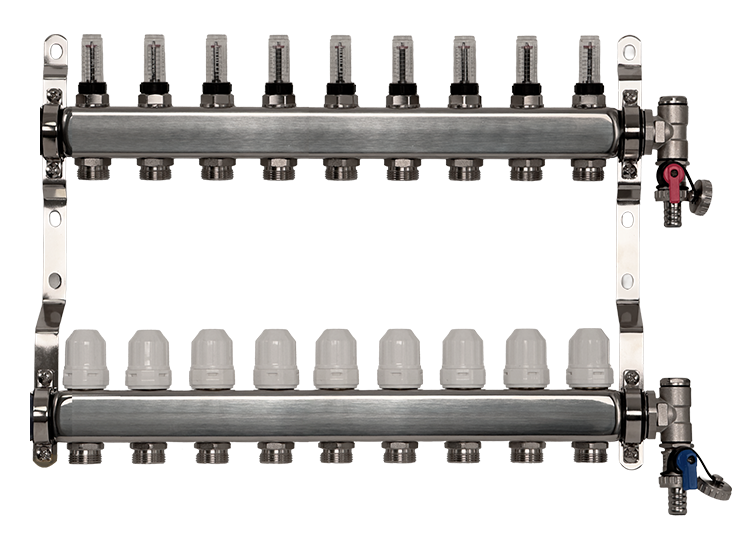

Wunda Premium Manifolds are pre-assembled using only quality components. Each manifold is built, tested and checked here in the UK by our fully trained technicians. Available in sizes from 2 port up to 12 port to suit your needs. The manifold should be positioned in a central location in the property with 300mm minimum (clearance) from the floor to allow access for pipe connection. From the flow bar, warm water is distributed to each loop of pipe via the adjustable flow gauges, returning via the return valves into the return bar.
Wunda premium stainless steel manifolds come with a 10 year guarantee on manifold bars and a 5 year guarantee on moving parts.
Manifold Dimensions 2-11 Port (without pumpset)
Click image to expand
https://cdn.shopify.com/s/files/1/0934/8291/0073/files/New_manifold_2-11_port_dims_chart_aug_2025.png?v=1763557027
Videos
We have additional manifold videos available to watch on our Videos page. We also have a wide range of manifold related factsheets available to download from our Support page.
