Premium Rapid Response® (end board) - Underfloor Heating

Premium Rapid Response® (end board) - Underfloor Heating

£12.59 GBP ex. VAT
£12.59 GBP ex. VAT
Sale
Shipping calculated at checkout.

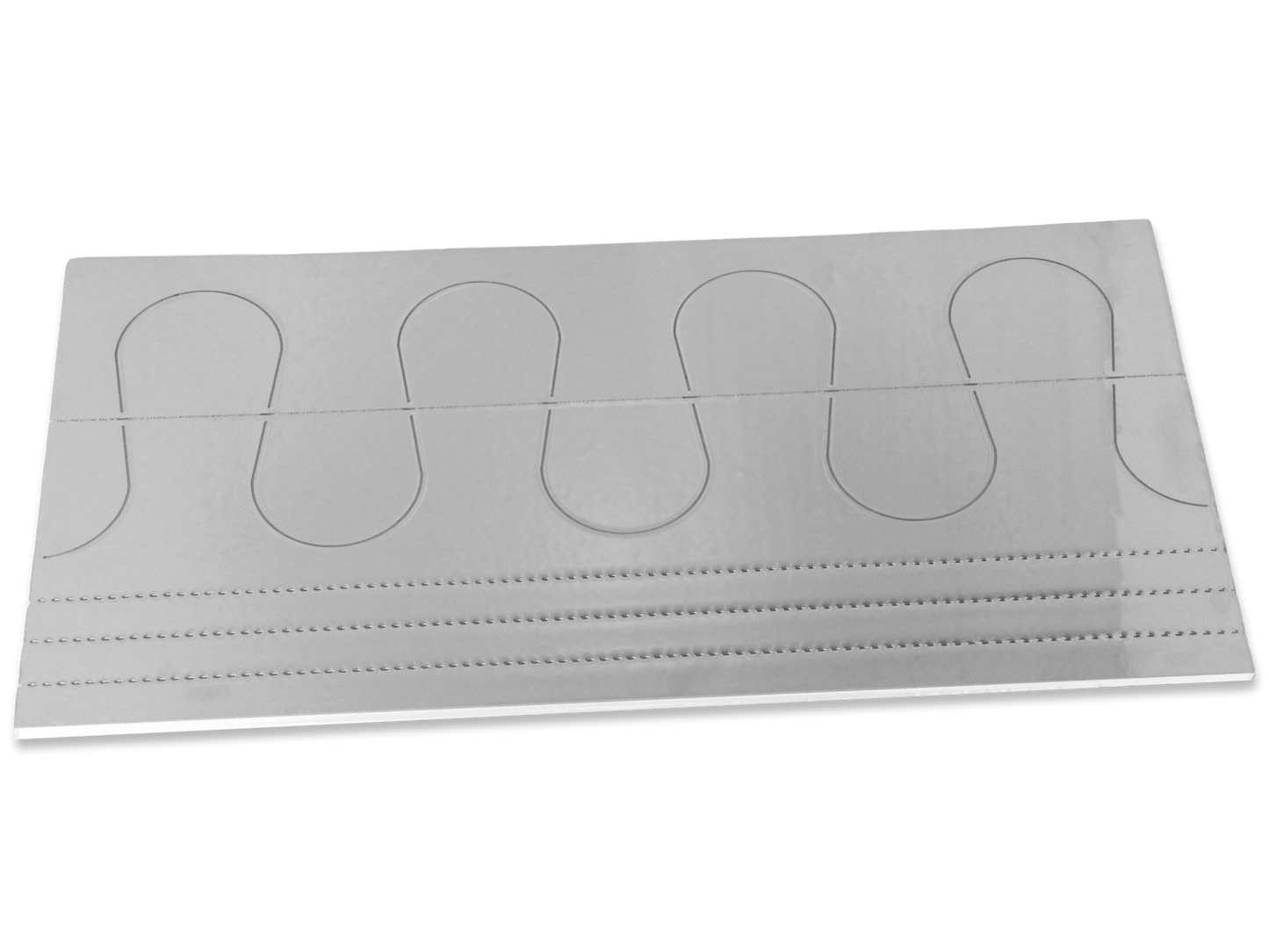

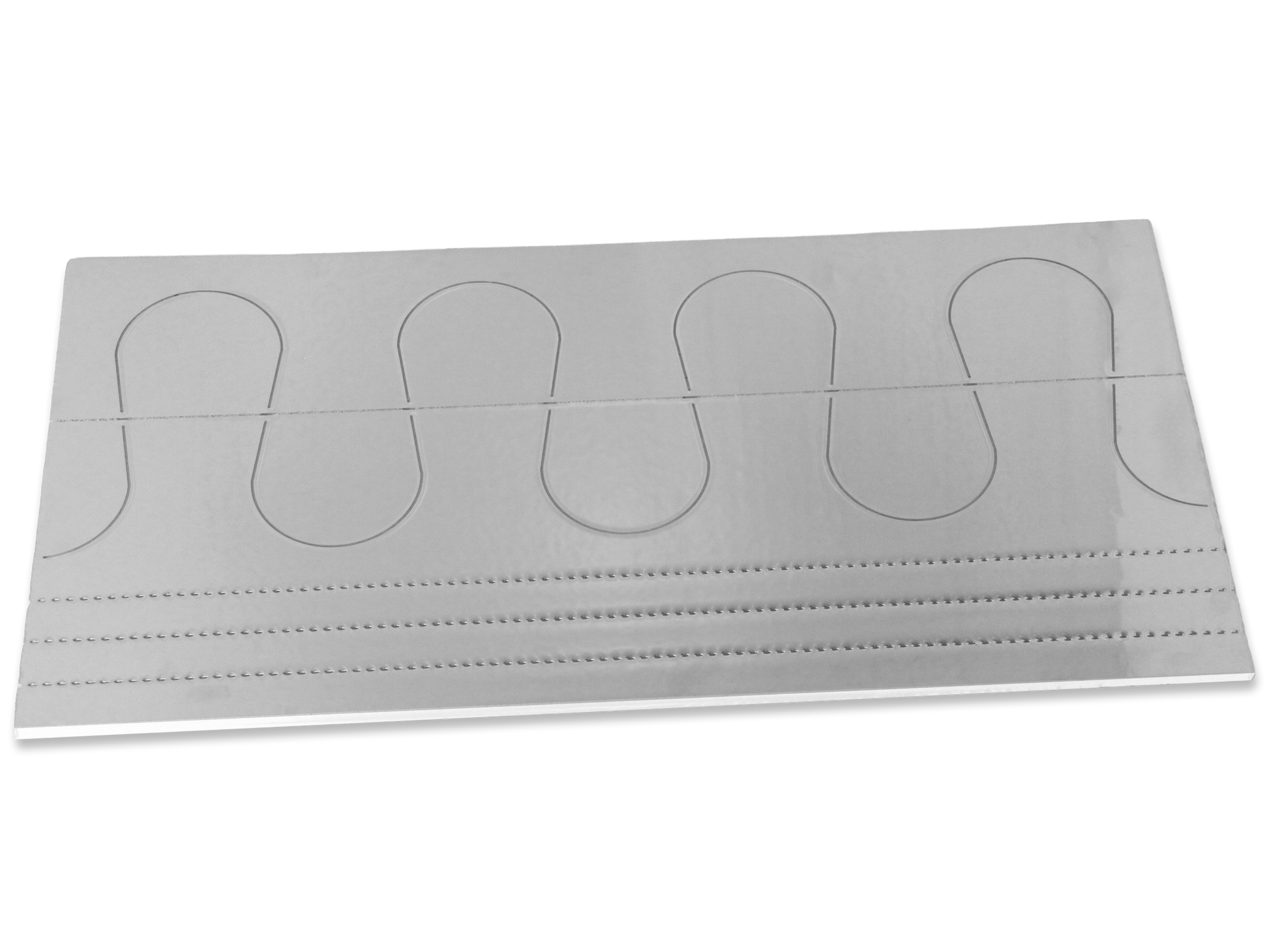

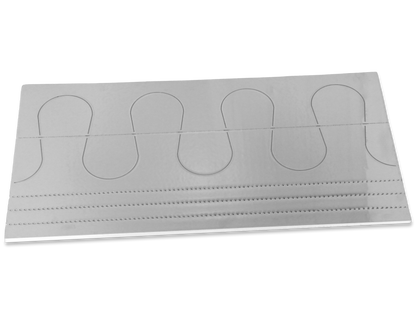

NEW & IMPROVED Premium 20mm Rapid Response® end board

Board consists of 2 opposing end returns, simply cut the board in half along pre-cut aluminium. This will provide 2 end returns which should be use on opposite walls to allow pipe to turn back when coming to the wall.

Wunda's new & improved end board features easy end returns & 3 transitional pipe channels with pre-serrated aluminium, simply walk the pipe in. No need to dig up floor, just spray and lay!

Suitable for tiling direct using an approved primer & tile adhesive refer to the installation guide for details.

Suitable for fitting Tile, Stone*, Laminate & wood direct to boards.

Dimensions: 1200mm x 600mm = 2 x 600mm x 600mm opposing ends.

20mm boards use 16mm pipe in 100m maximum lengths

Designed to be used with Wunda's 20mm Rapid Response® Main Board.







View full details

Product Information

NEW & IMPROVED Premium 20mm Rapid Response - End Return Board.

Wunda New & improved end board, this end return & transitional pipe run board has pre-serrated aluminium, simply walk the pipe in. No more empty voids in the board to fill and no more end return channels to cut by hand.

Designed to be used with Wunda's 20mm Rapid Response® Main Board. 16mm pipe channels for use with main board at 150mm spacing.

*Natural stone may require a backerboard- please call for details or refer to our Support page for specific details.

|| Value || Spec ||
| Length | 1200mm |
| Width | 600mm |
| Profile Height | 20mm (uses 16mm pipe) |
| Pipe Spacing | 20mm = 150mm pipe spacings |
| Material | Expanded Polystyrene |
| Coating | Rapid Response® Aluminium |
| Weight | 1.0kg |
| Guaranteed for | 10 years |
