WundaTrade

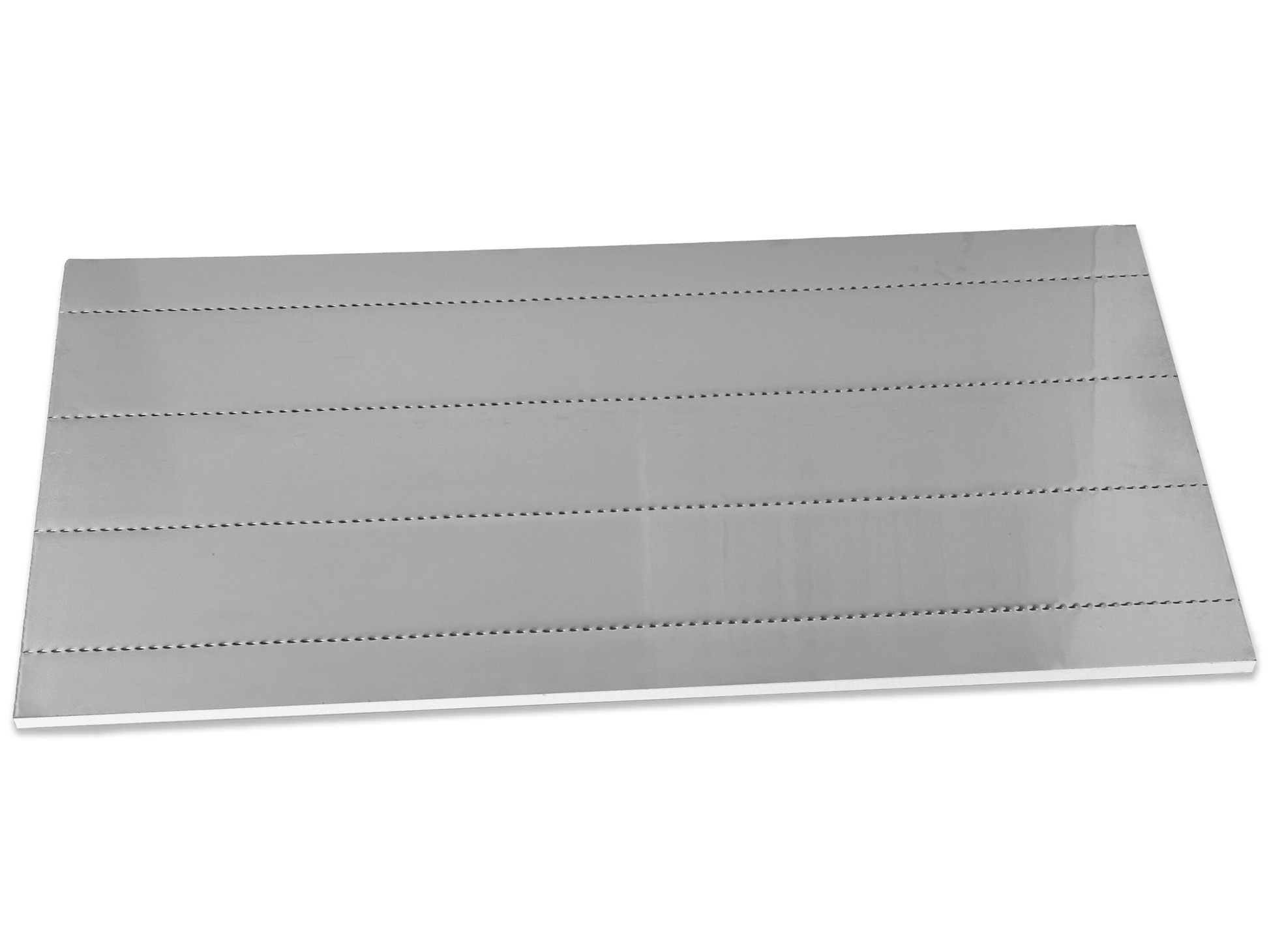

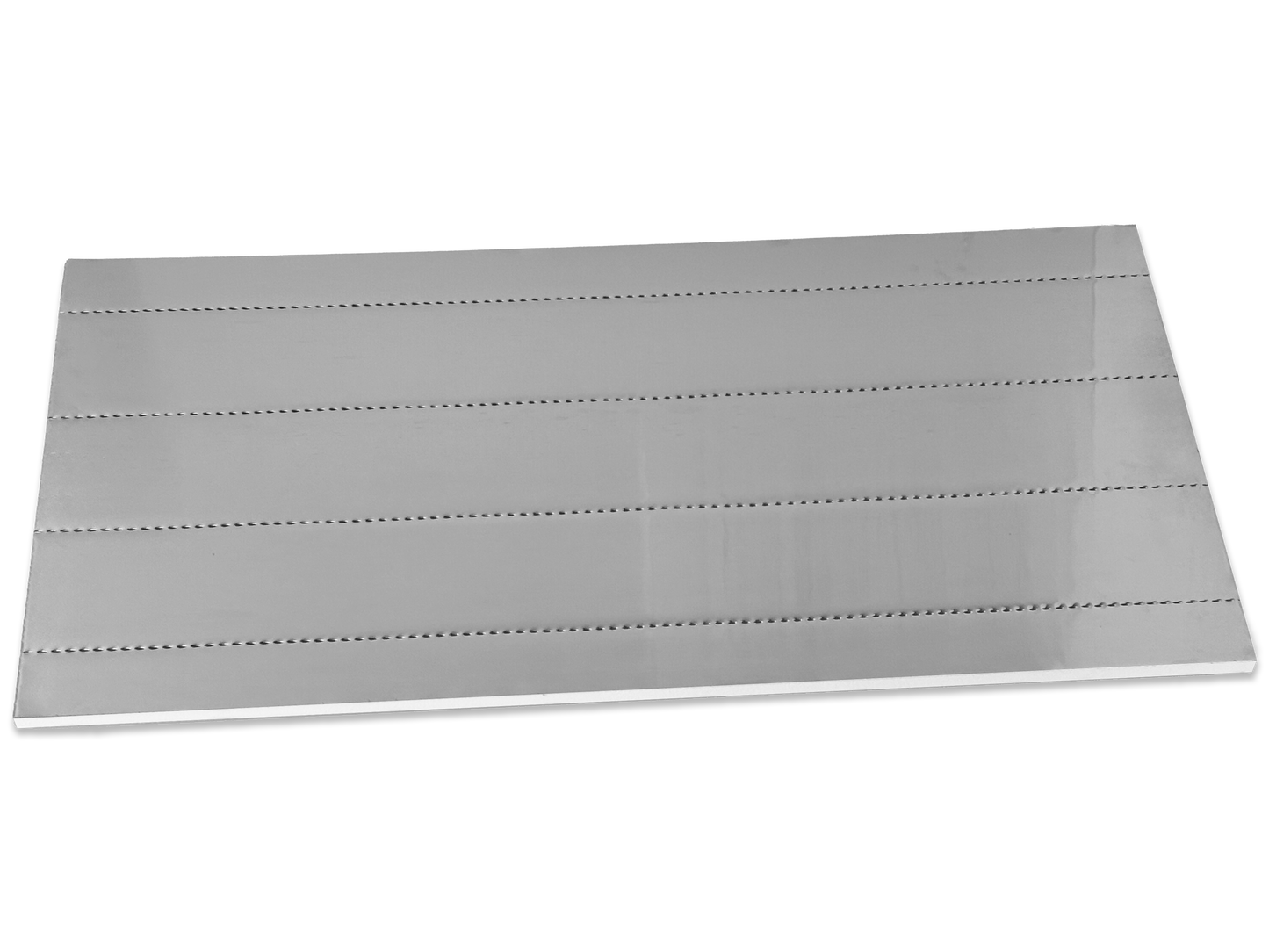

Premium Rapid Response® Main Board – Underfloor Heating
Premium Rapid Response® Main Board – Underfloor Heating
Shipping calculated at checkout.
Couldn't load pickup availability
NEW & IMPROVED Premium 20mm Rapid Response – Main Board straight pipe channels only.
Wunda New & improved main board, this board has 4 pipe channels set at 150mm spacing, with pre-serrated aluminium for easy pipe install.
No end returns or transitional channels – which means no more empty voids in the board to fill or end returns to cut by hand. Purchase end returns separately.
Suitable for tiling direct using an approved primer & tile adhesive refer to install guide for details– no backerboards or intermediate layers required*, Using Ultra method simply prime the aluminium first, for tile adhesives.
No need to dig up floors, just spray and lay!
Tile direct to board! – Suitable for fitting Tile, Stone*, Laminate & wood direct to boards.
Thick aluminium for Rapid Response®, on demand heating or plain boards
Dimensions: 1200mm x 600mm
20mm boards use 16mm pipe in 100m maximum lengths
Designed to be used with separate Wunda 20mm Rapid Response end return boards.
Share
Product Information
NEW & IMPROVED Premium 20mm Rapid Response - Main Board
Wunda New & improved main board, this main board has 4 pipe channels with pre-serrated aluminium, simply walk the pipe in. No end returns or transitional channels - which means no more empty voids in the board to fill and no more end return channels to cut by hand.
Suitable for tiling direct using an approved primer & tile adhesive refer to install guide for details– no backerboards or intermediate layers required*, Using Ultra method simply prime the aluminium first, for tile adhesives.
No need to dig up floors, just spray and lay! Tile direct to board! – Suitable for fitting Tile, Stone*, Laminate & wood direct to boards.
Thick aluminium for Rapid Response®, on demand heating or plain boards Dimensions: 1200mm x 600mm 20mm boards use 16mm pipe in 100m maximum lengths
Designed to be used with Wunda's 20mm Rapid Response end return boards.
*Natural stone may require a backerboard- please call for details or refer to our Support page for specific details.
|| Value || Spec ||
| Length | 1200mm |
| Width | 600mm |
| Profile Height | 20mm (uses 16mm pipe) |
| Pipe Spacing | 20mm = 150mm pipe spacings |
| Material | Expanded Polystyrene |
| Coating | Rapid Response® Aluminium |
| Weight | 1.0kg |
| Guaranteed for | 10 years |
