Premium Rapid Response® Main Board – Underfloor Heating

Premium Rapid Response® Main Board – Underfloor Heating

Regular price £12.59 GBP ex. VAT
Regular price Sale price £12.59 GBP ex. VAT
Sale Low stock, call for availability
Shipping calculated at checkout.

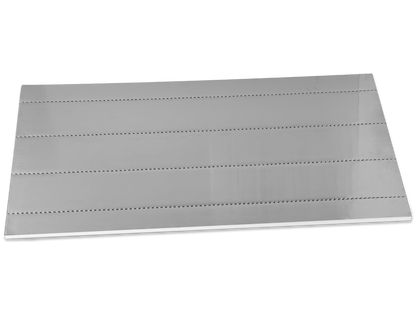

NEW & IMPROVED Premium 20mm Rapid Response Main Board  straight pipe channels only.

Wunda’s new and improved main board features four pipe channels set at 150mm spacing, with pre-serrated aluminum for easy pipe installation. The board is made of thick aluminum for Rapid Response®, on-demand heating.

There are no end returns or transitional channels, which means no more empty voids in the board to fill or end returns to cut by hand. End returns are sold separately. No need to dig up floors, just spray and lay!

The board is suitable for tiling directly using an approved primer and tile adhesive. Refer to the installation guide for details. Suitable for fitting tile, stone*, laminate, and wood directly to the boards.

Dimensions: 1200mm x 600mm

20mm boards use 16mm pipe in 100m maximum lengths

Designed to be used with separate Wunda 20mm Rapid Response end return boards.

View full details

Product Information

NEW & IMPROVED Premium 20mm Rapid Response - Main Board

Wunda New & improved main board, this main board has 4 pipe channels with pre-serrated aluminium, simply walk the pipe in. No end returns or transitional channels - which means no more empty voids in the board to fill and no more end return channels to cut by hand.

Suitable for tiling direct using an approved primer & tile adhesive refer to install guide for details– no backerboards or intermediate layers required*, Using Ultra method simply prime the aluminium first, for tile adhesives.

No need to dig up floors, just spray and lay! Tile direct to board! – Suitable for fitting Tile, Stone*, Laminate & wood direct to boards.

Thick aluminium for Rapid Response®, on demand heating or plain boards Dimensions: 1200mm x 600mm 20mm boards use 16mm pipe in 100m maximum lengths

Designed to be used with Wunda's 20mm Rapid Response end return boards.

*Natural stone may require a backerboard- please call for details or refer to our Support page for specific details.

|| Value || Spec ||
| Length | 1200mm |
| Width | 600mm |
| Profile Height | 20mm (uses 16mm pipe) |
| Pipe Spacing | 20mm = 150mm pipe spacings |
| Material | Expanded Polystyrene |
| Coating | Rapid Response® Aluminium |
| Weight | 1.0kg |
| Guaranteed for | 10 years |
