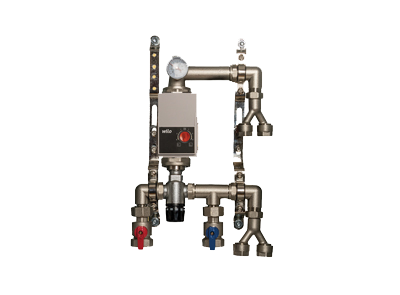

Small Area Double Loop Wilo Pump Set 8Kw


Wilo ‘A’ Rated pump Small Area Double Loop Pumpset & Mixing Valve.

Compact pumpset used to supply systems upto 8kW using TWO loops of pipe up-to 120 metres per/each loop. Pack consists of mixing valve, Wilo pump, Y-splitters, 16mm Cone connectors, mounting brackets, temp gauge & airvent.

Optional 1″ Isolation valves – £10(+VAT)

Fits perfectly in our Universal Manifold Cabinets

Product Information


  Can be installed and connected to existing wet heating systems.   The beauty of these small area pumpsets is that all connections are from below allowing the pump to be mounted vertically as per manufacturers guarantee requirements. Maximum length of pipe supported is TWO loops of upto 120 linear metres per/each loop.

Pumpset Dimensions

Area Measurement
A 160mm
B 135mm
C 265mm
D 352mm
E 405mm
F 50mm
Wilo pump overall depth 125mm or 160mm pump face-on
Grundfos pump overall depth 140mm or 160mm pump face-on
Isolation ValvesWith Isolation Valves (+£10 exc. VAT), Without Isolation Valves (+£0)
